Eagle Floats
|

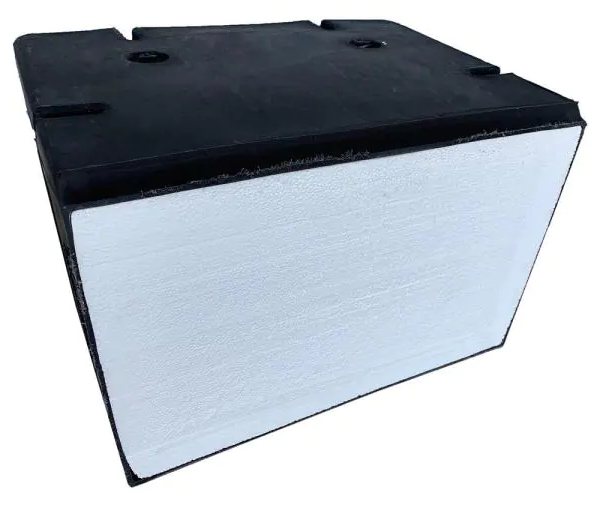

Eagle Float Drums. All Eagle Floats™ outer shells are manufactured to the following standards from 100% Virgin LLDE, filled with molded in place virgin 1pcf Expanded Polystyrene. EAGLE FLOATFIFTEEN-YEAR WARRANTYBecause of the importance of precise and consistent "foaming" of a dock float in order to insure long life, every Eagle Float is foamed utilizing state of the art, computer controlled technology. Rather than relying on people to manually control steam valves, constantly monitor pressures and timing, Eagle Floats are foamed using a proprietary technology. Since no such technology existed or is being used elsewhere in the industry, we completely developed the hardware and software to consistently and precisely control our foaming process. The entire foaming process is controlled and monitored by a computer specifically designed for this application. This insures that EVERY Eagle Float is properly foamed and our foam core is as dependable as our polyethylene shell. Just another example of Eagle Floats utilizing cutting edge technology and engineering for superior quality and affordability. · Heavy wall thickness (.150) nominal wall · One piece rotational molded shell · Completely foam filled 1.0-1.5 density EPS · Virgin grade polyethylene materials · UV inhibitors · Molded in Mounting slots · Heavy Duty mounting flange · Meets Corps of Engineers Regulation #36 CFR Part 327 · 15 year warranty · Tank tested buoyancy ratings +0/-5% |
  |
|
Eagle Floats |
|
| MODEL | To Order Float Drums |
SIZE (Feet & Inches) |
SHIPPING WEIGHT |
Buoyancy |
CUBIC FEET |
|---|---|---|---|---|---|

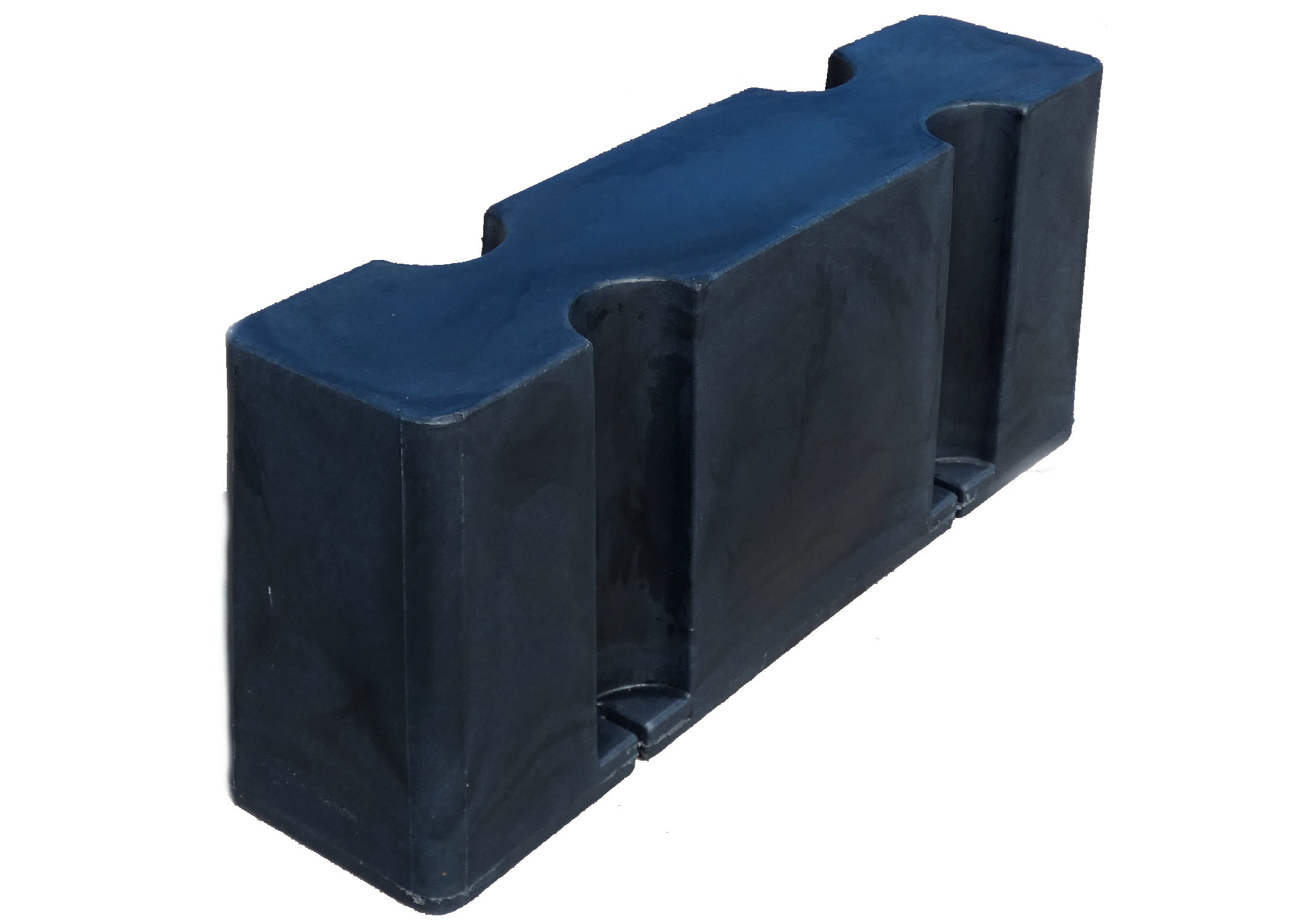

| FE-1420 |
 |
1' X 4' X 20"  |
27 # |
310 | 6.67 |

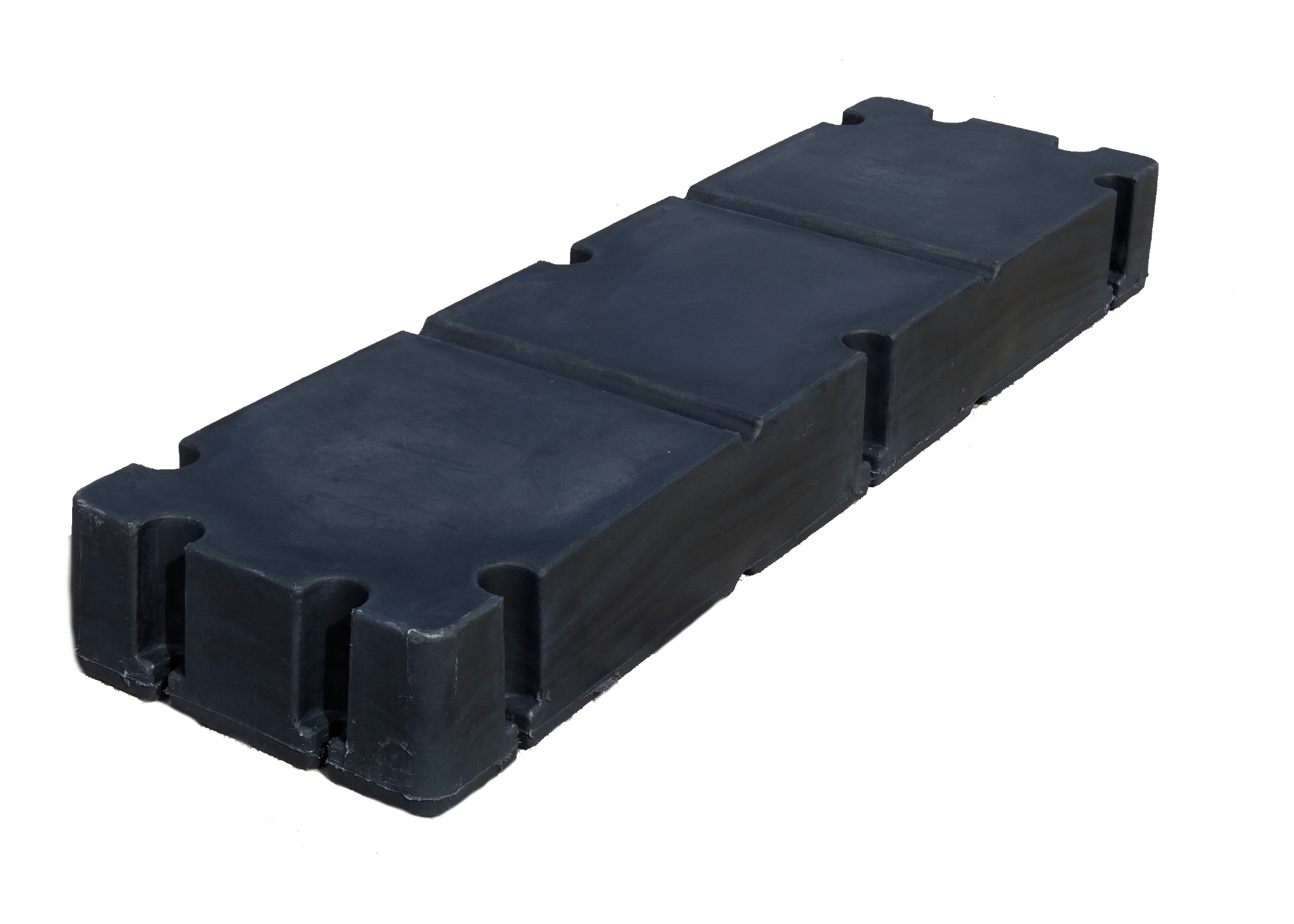

| FE-207208 |
|
20" X 72" X 8"  |
42 # |
350 | 6.67 |

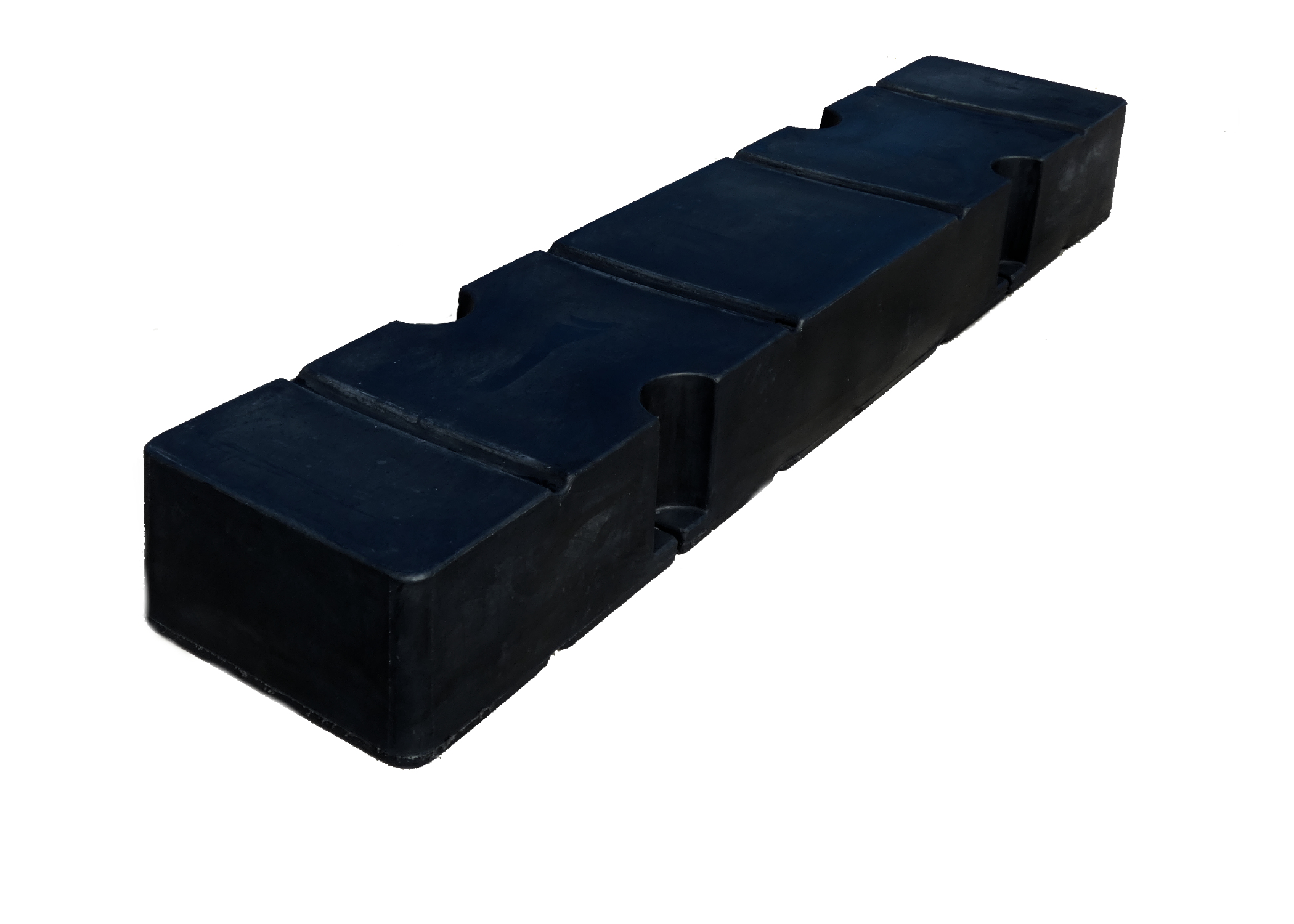

| FE-209610 |
|
20" X 96" X 10"  |
63 # |
670 | 13.00 |

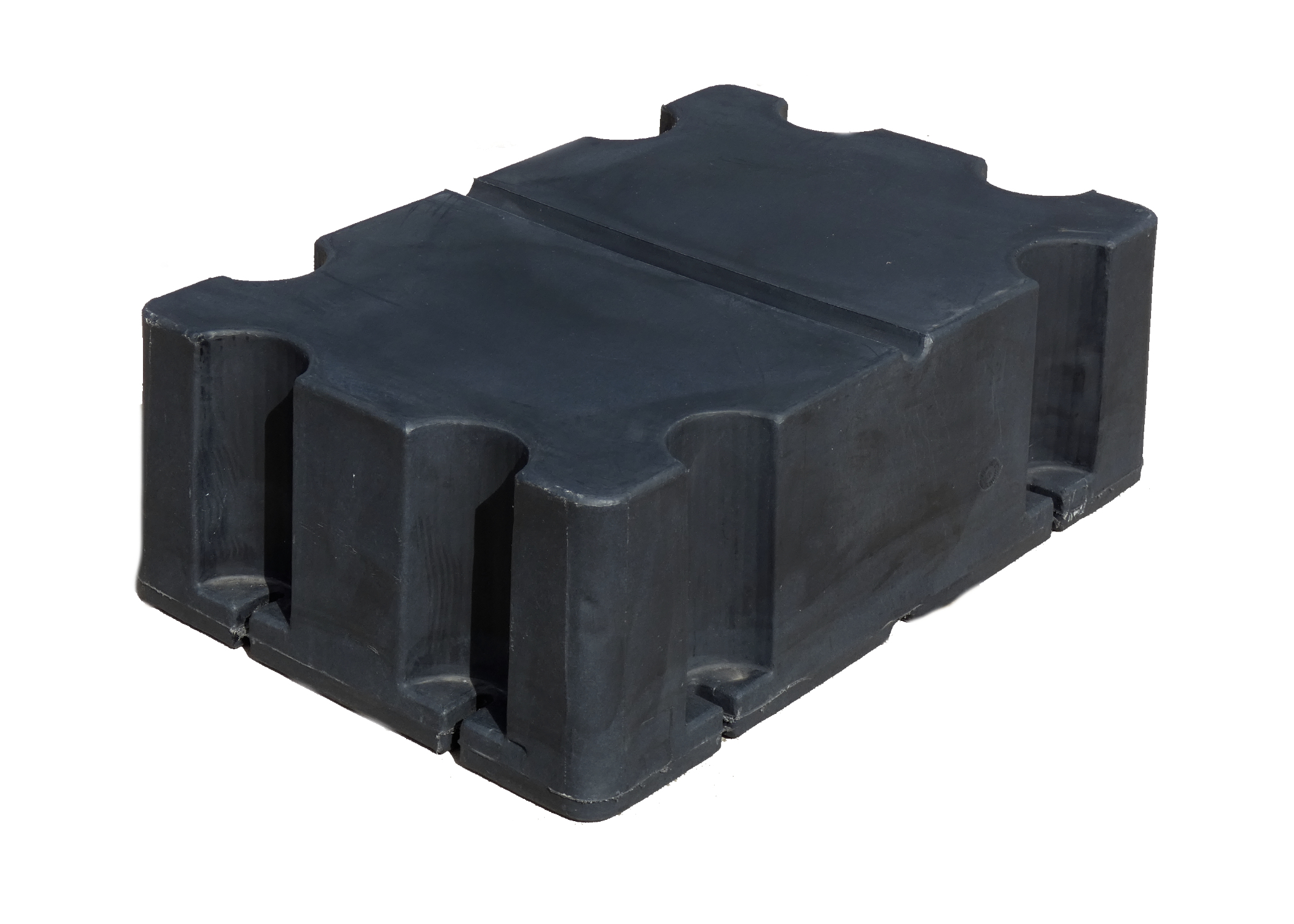

| FE-2312 |
|
2' X 3' X 12"  |
33 # |
300 | 6.00 |

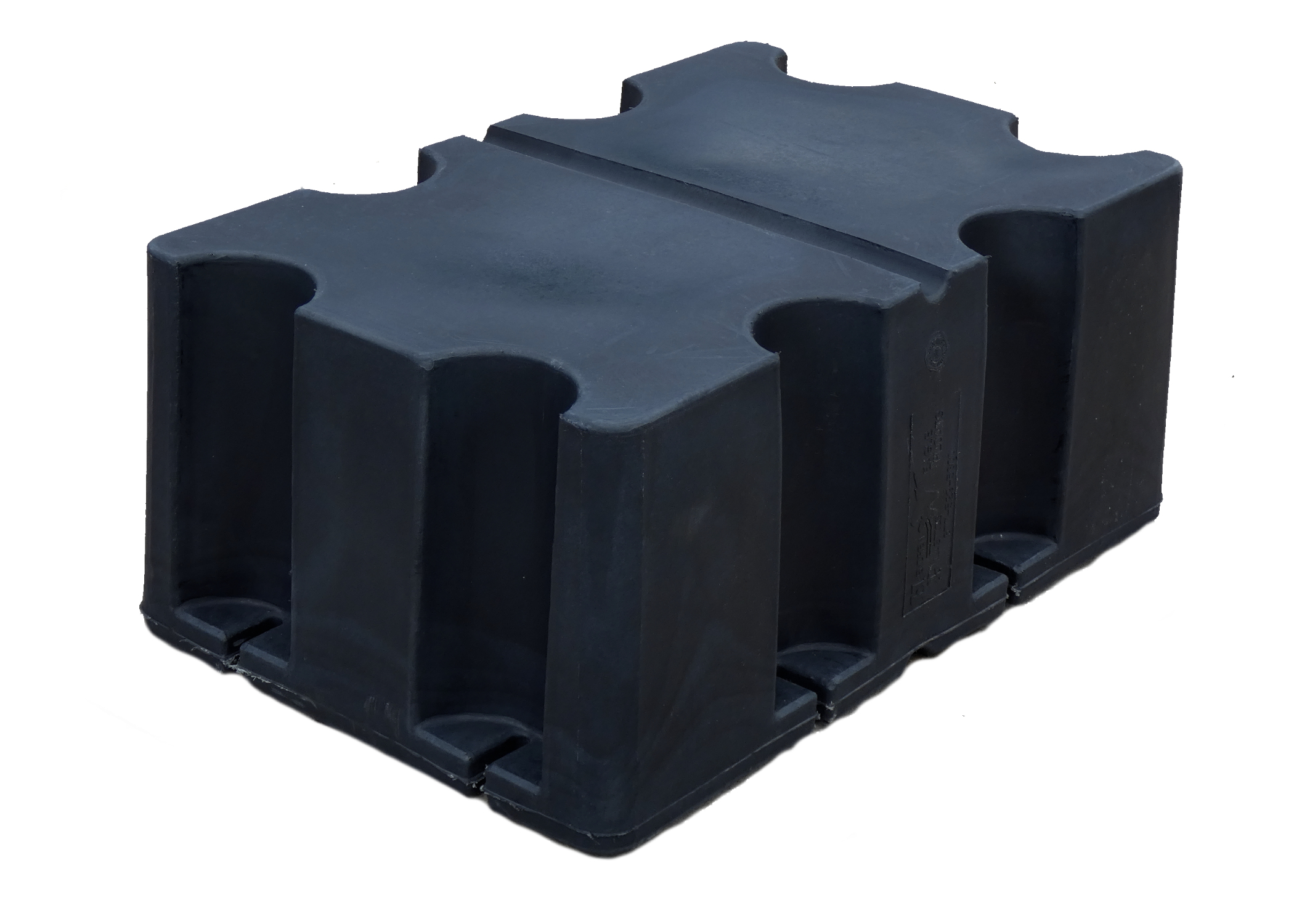

| FE-2316 |
|
2' X 3' X 16"  |
34 # |
390 | 8.00 |

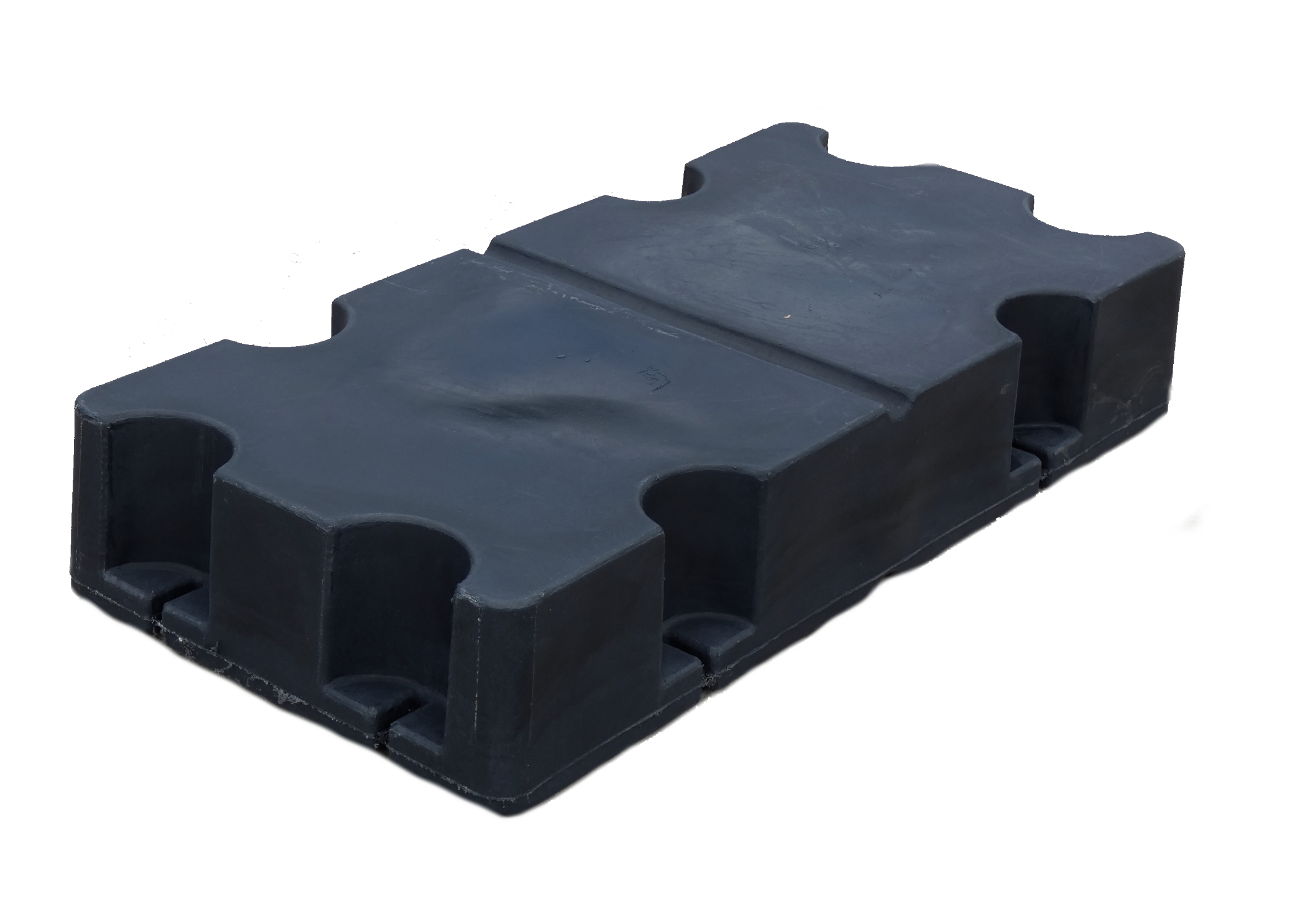

| FE-248 |
|
2' X 4' X 8"  |
30 # |
290 | 5.33 |

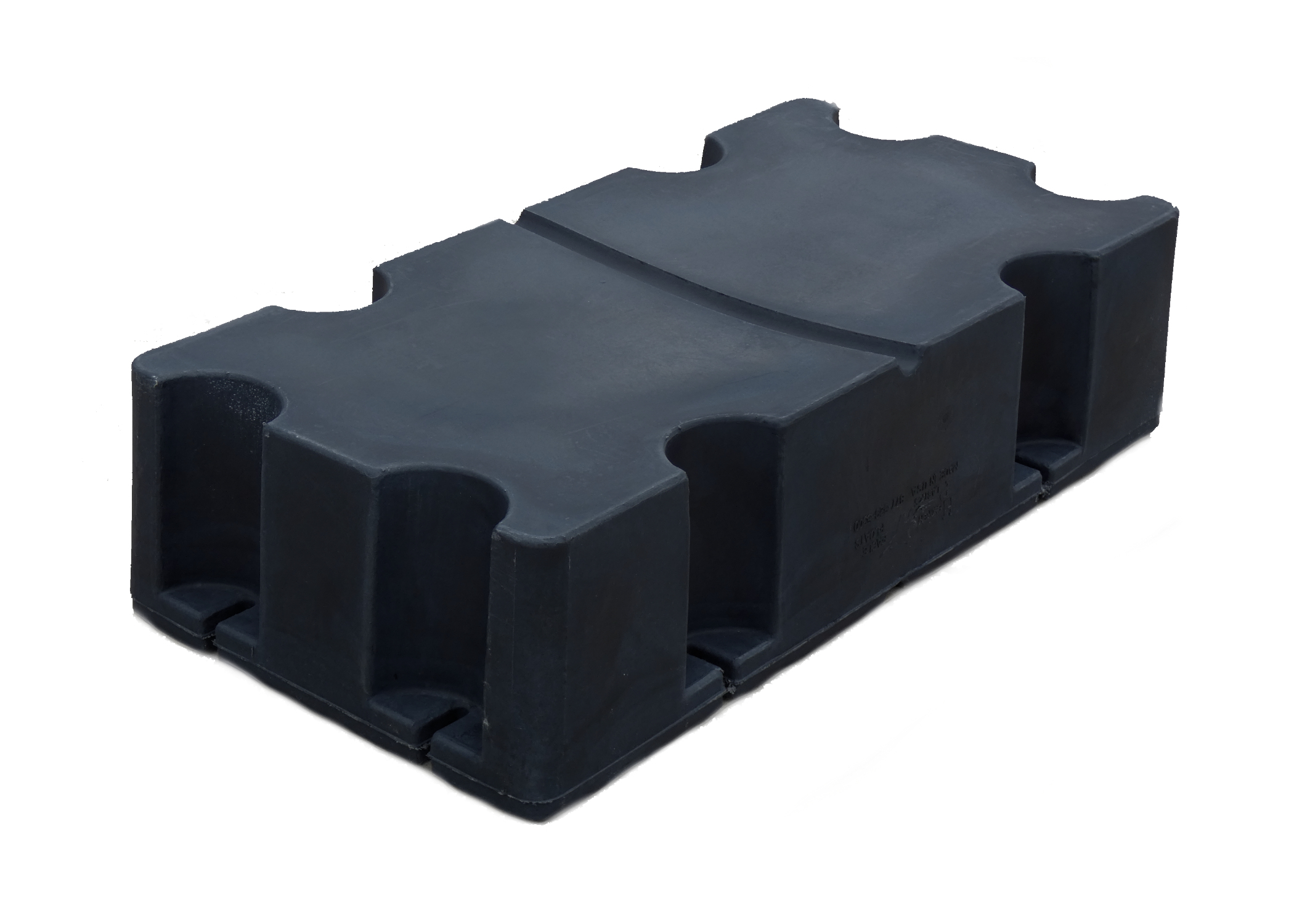

| FE-2412 |
|
2' X 4' X 12"  |
31 # |
390 | 8.00 |

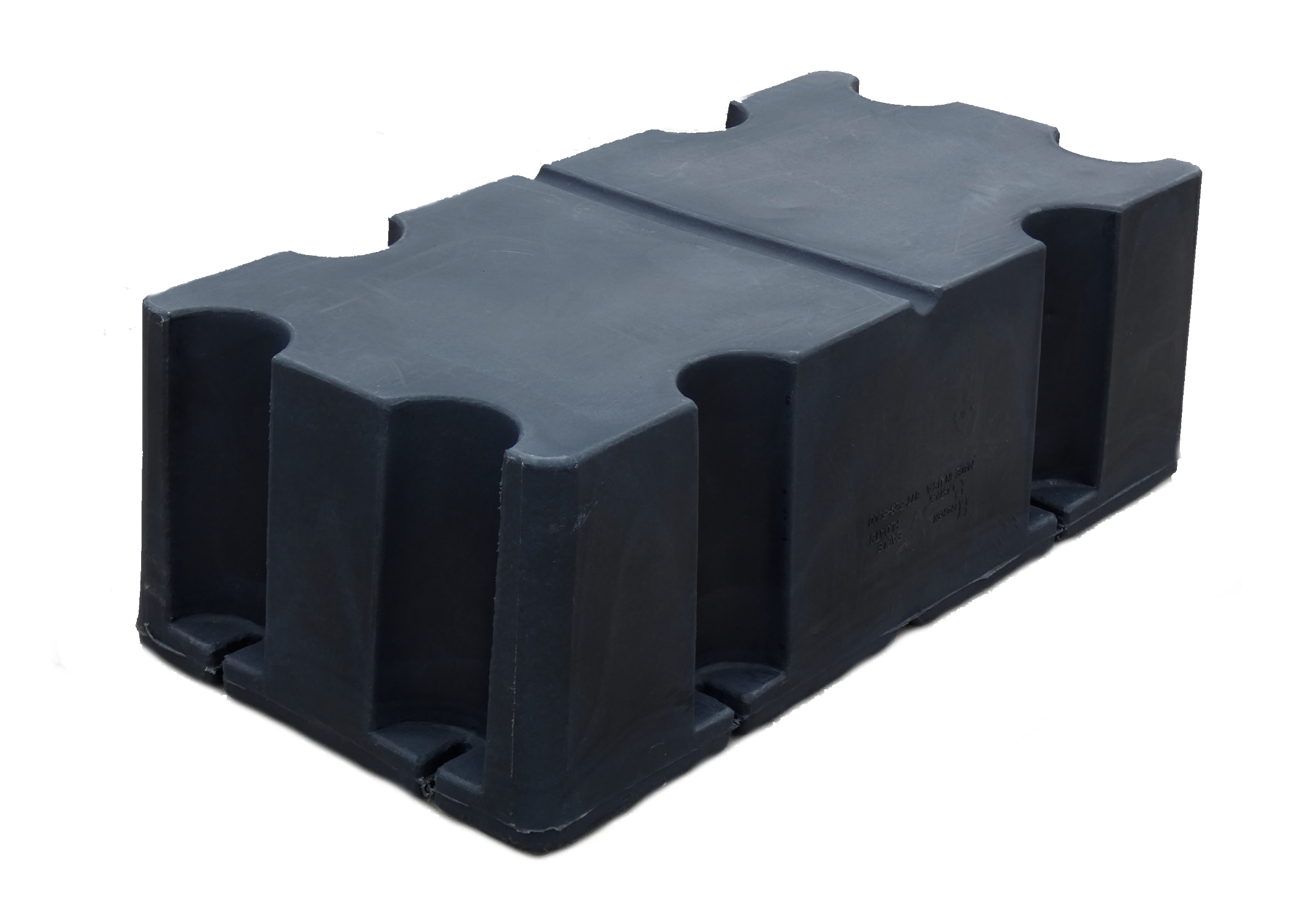

| FE-2416 |
|
2' X 4' X 16"  |
35 # |
530 | 10.70 |
| FE-2420 |
|
2' X 4' X 20" |
39 # |
680 | 13.30 |
| FE-2424 |
|
2' X 4' X 24" | 44 # |
790 | 12.00 |

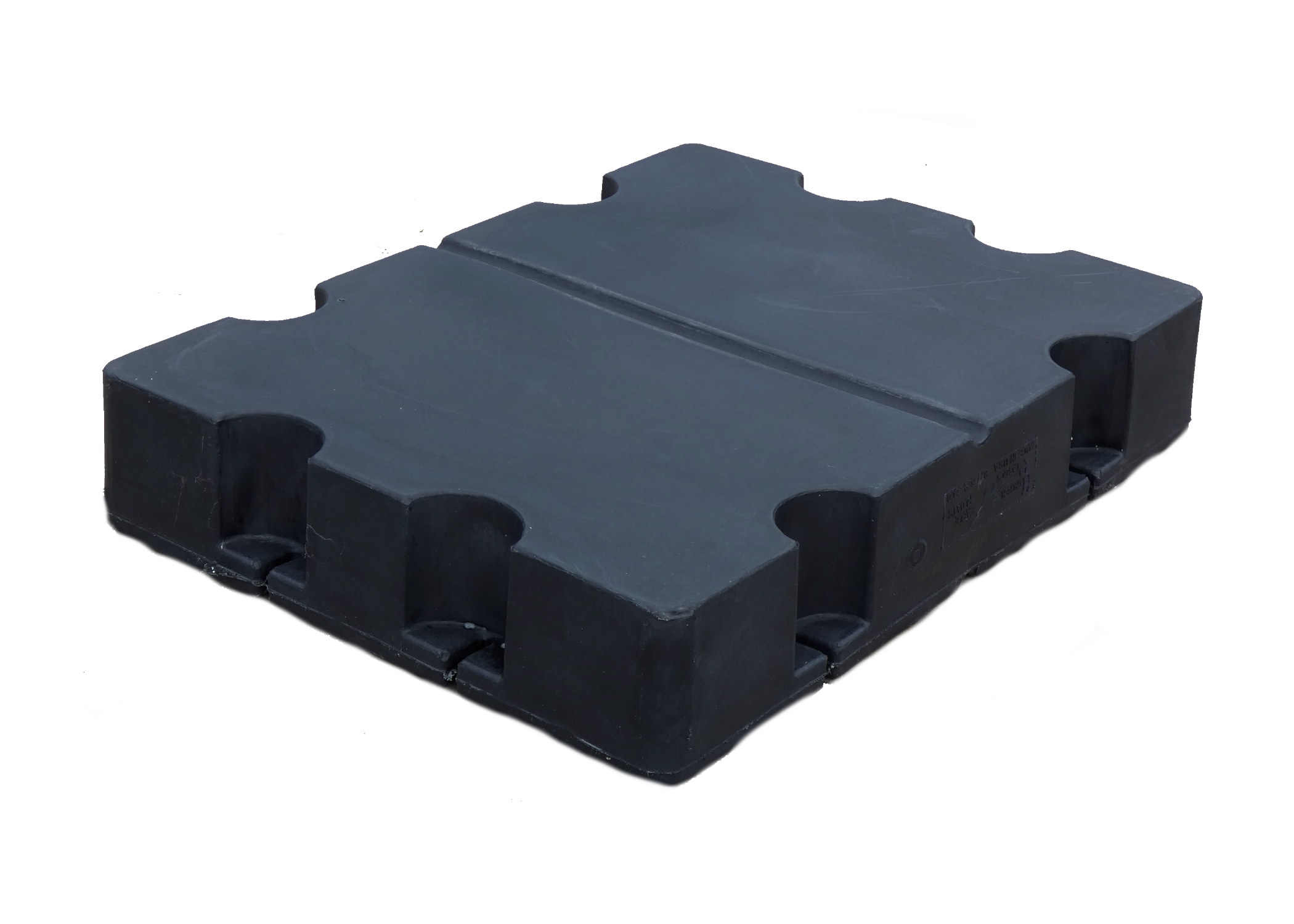

| FE-348 |
|
3' X 4' X 8"  |
35 # |
460 | 8.00 |

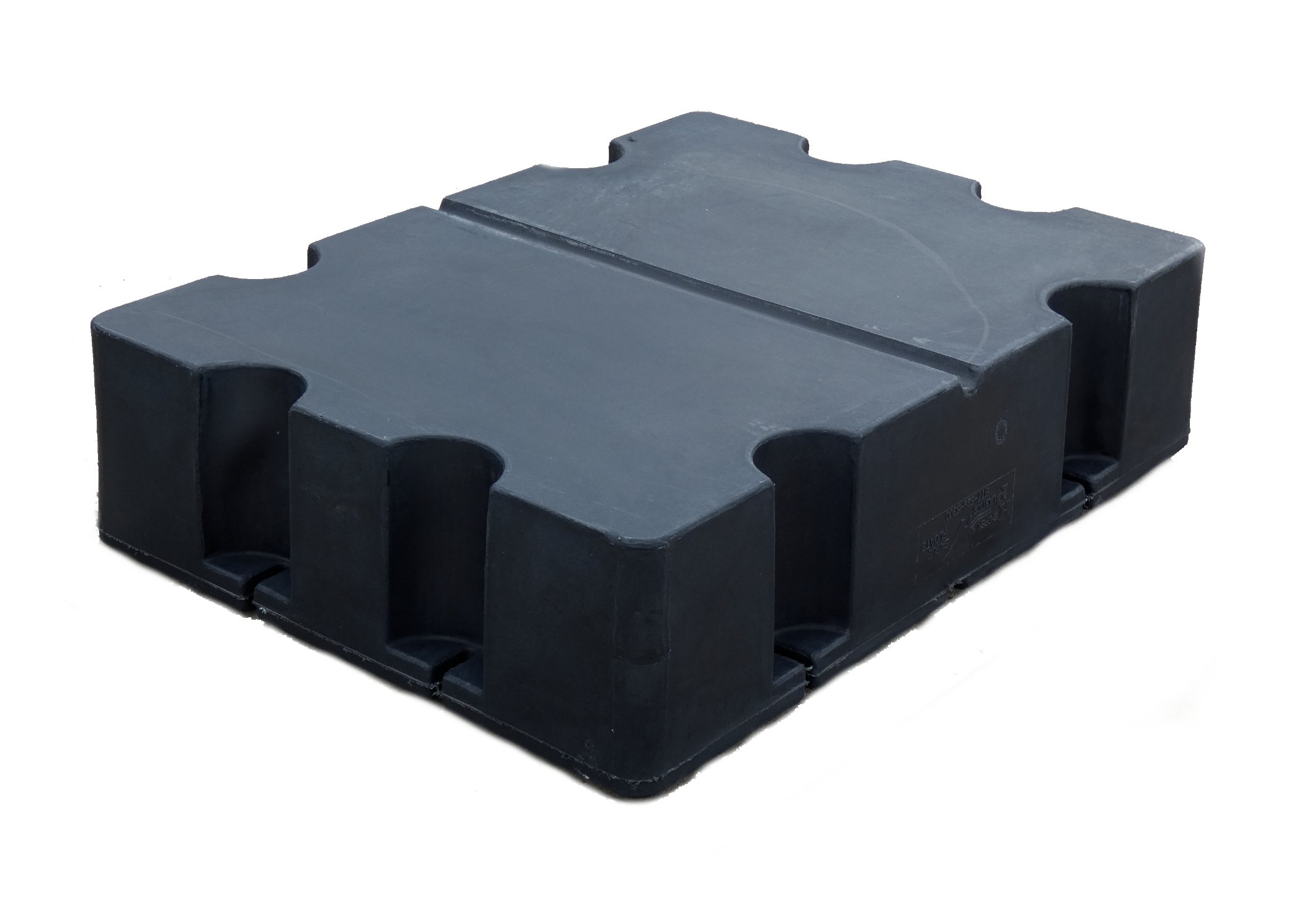

| FE-3412 |
|
3' X 4' X 12"  |
41 # |
620 | 12.00 |

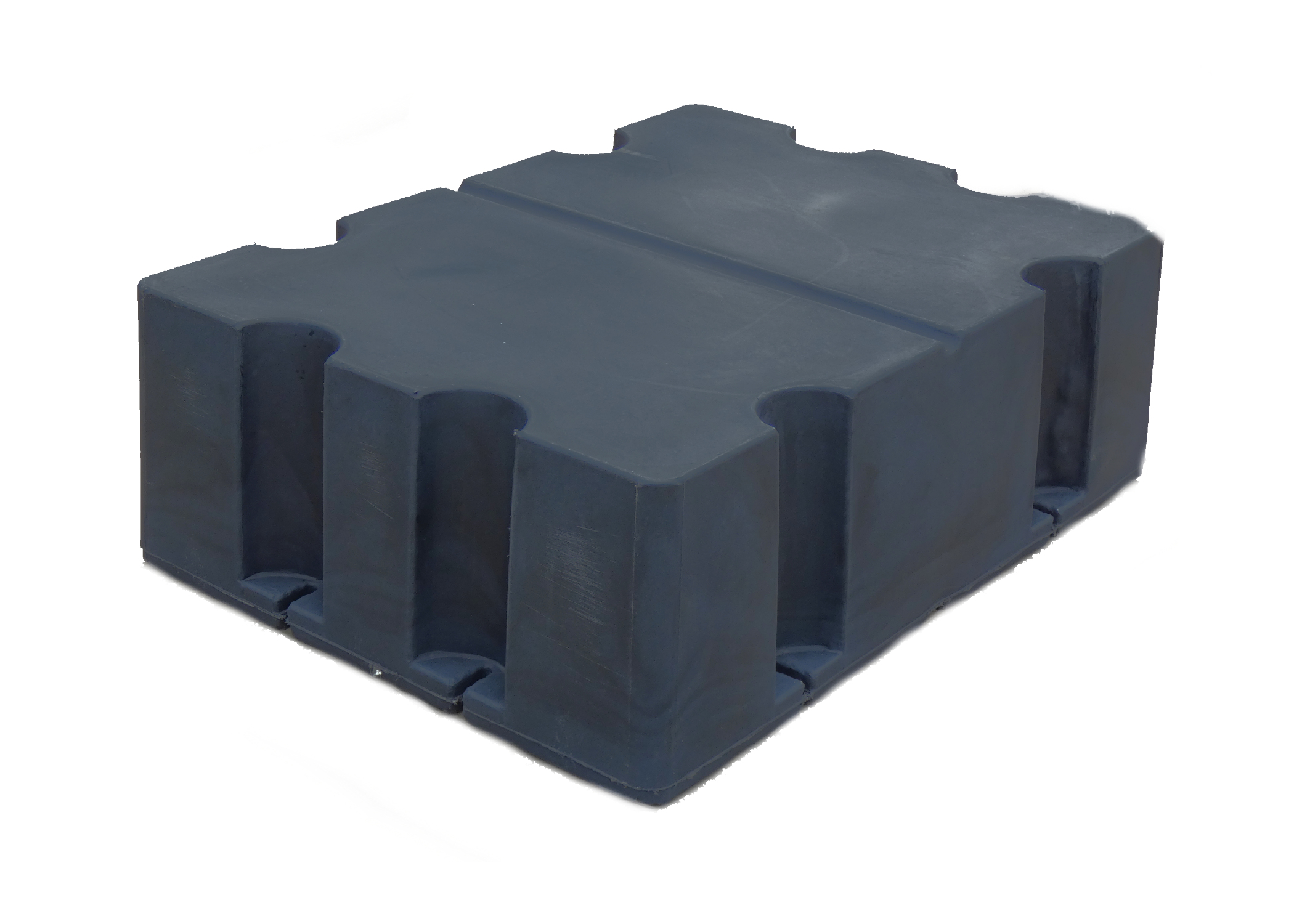

| FE-3416 |
|
3' X 4' X 16"  |
49 # |
820 | 16.00 |
| FE-3420 |
|
3' X 4' X 20"  |
54 # |
1050 | 20.00 |
| FE-3424 |
|
3' X 4' X 24" | 62 # |
1260 | 24.00 |

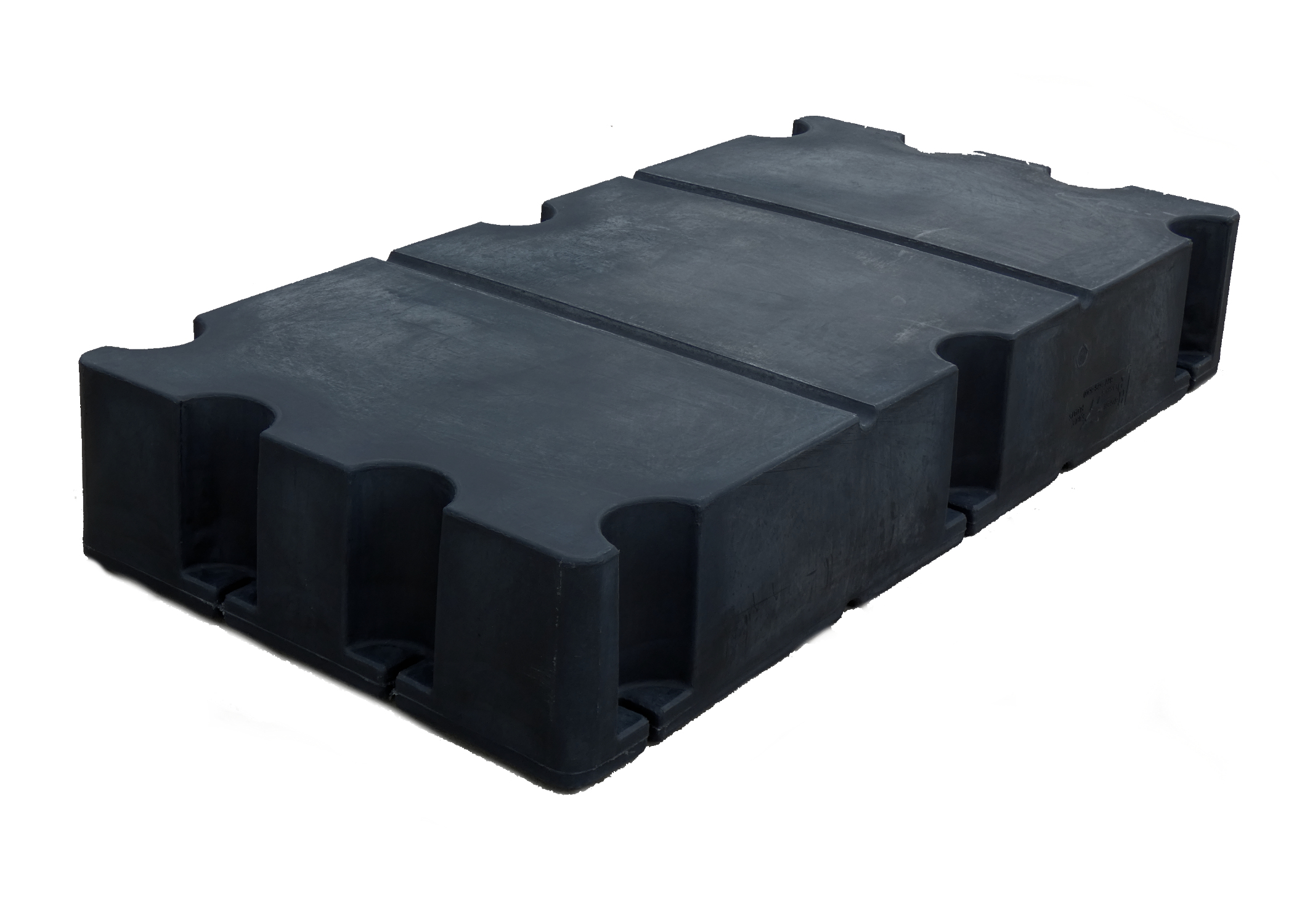

| FE-3612 |
|
3' X 6' X 12"  |
61 # |
950 | 18.00 |

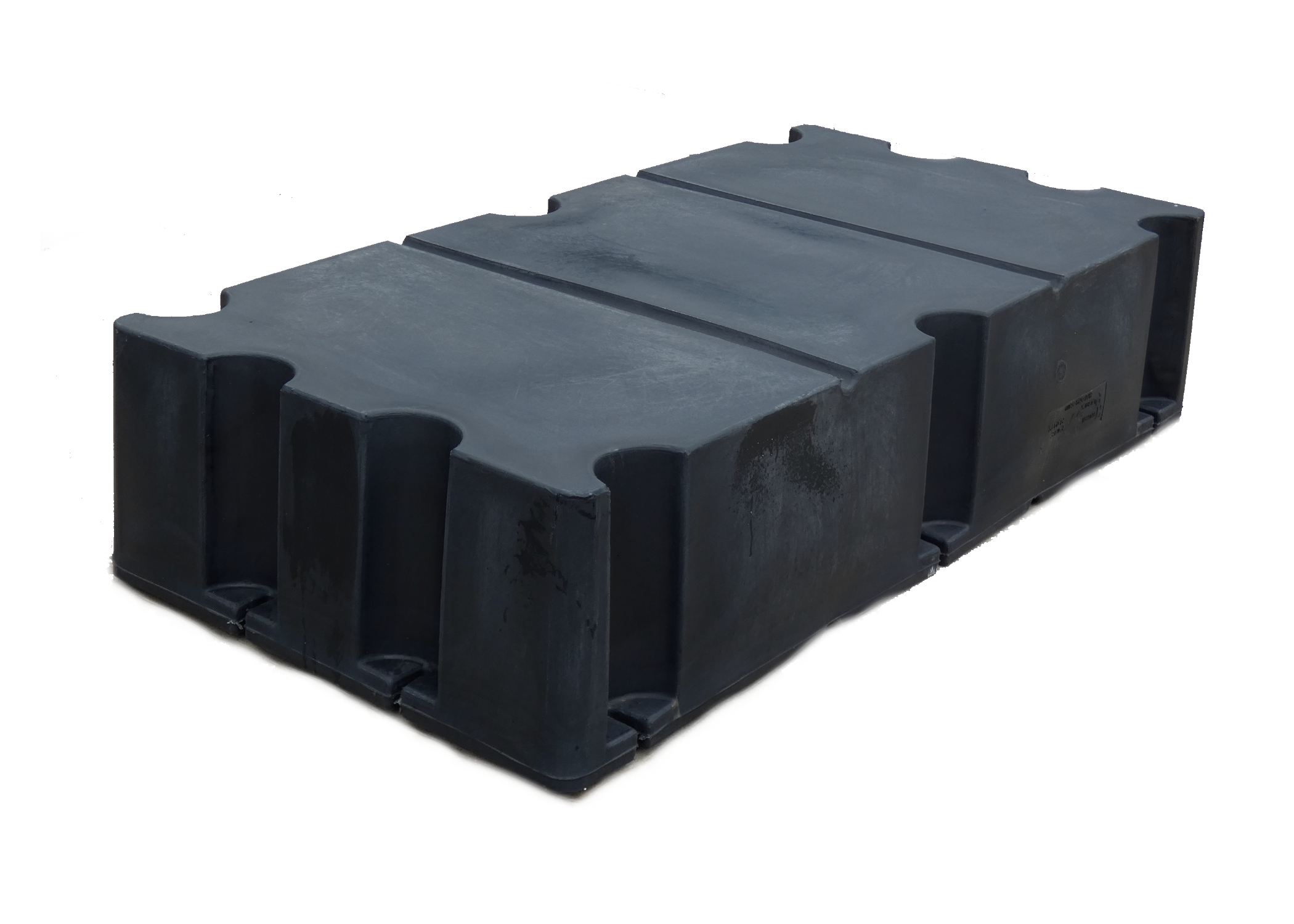

| FE-3616 |
|
3' X 6' X 16"  |
69 # |
1270 | 24.00 |
| FE-3620 |
|
3' X 6' X 20" | 81 # |
1580 | 30.00 |
| FE-3624 |
|
3' X 6' X 24" | 92 # |
1850 | 36.00 |
| FE-3632 |
|
3' X 6' X 32" | 111 # |
2430 | 48.00 |

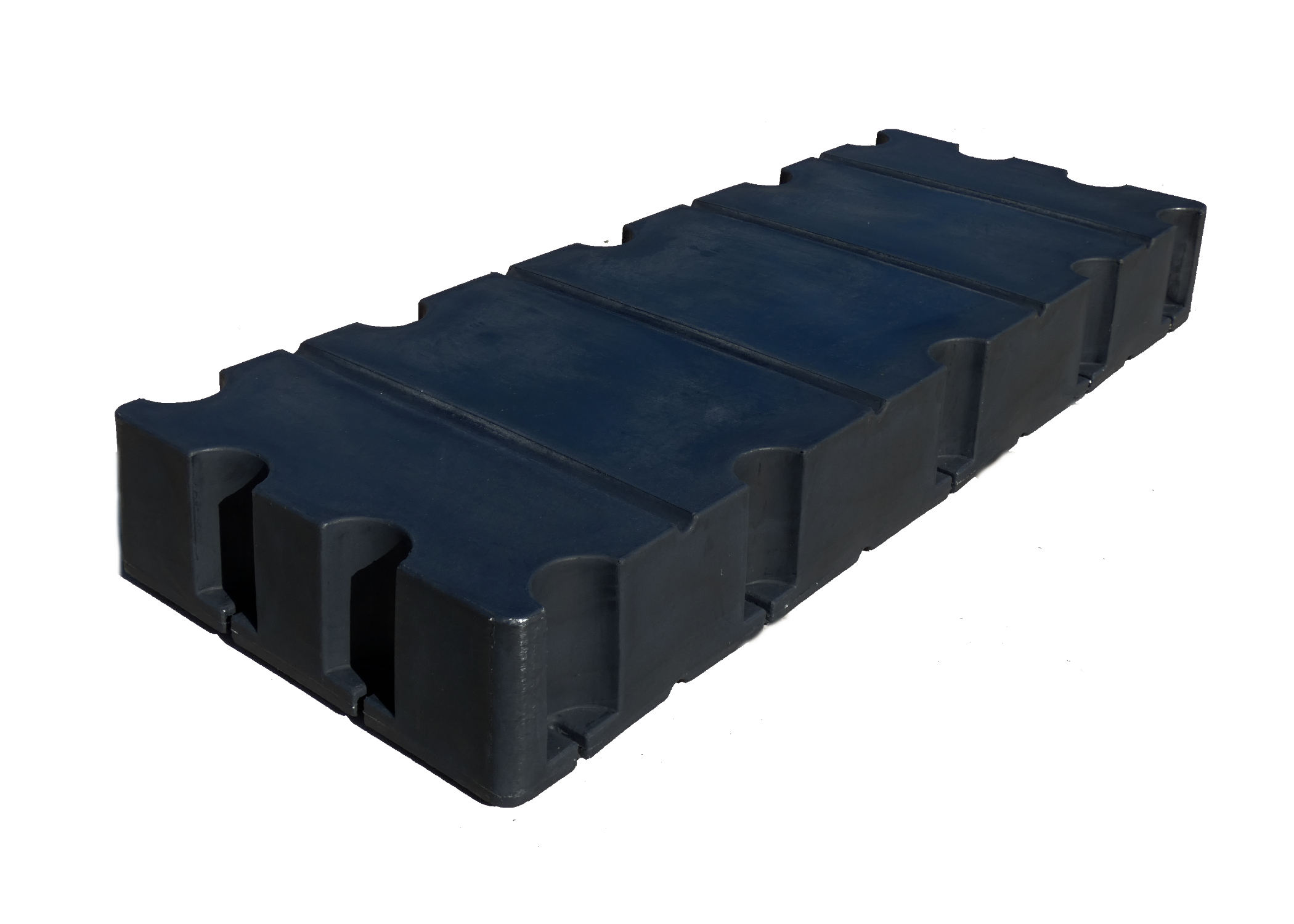

| FE-3812 |
|
3' X 8' X 12"  |
81 # | 1250 | 24.00 |

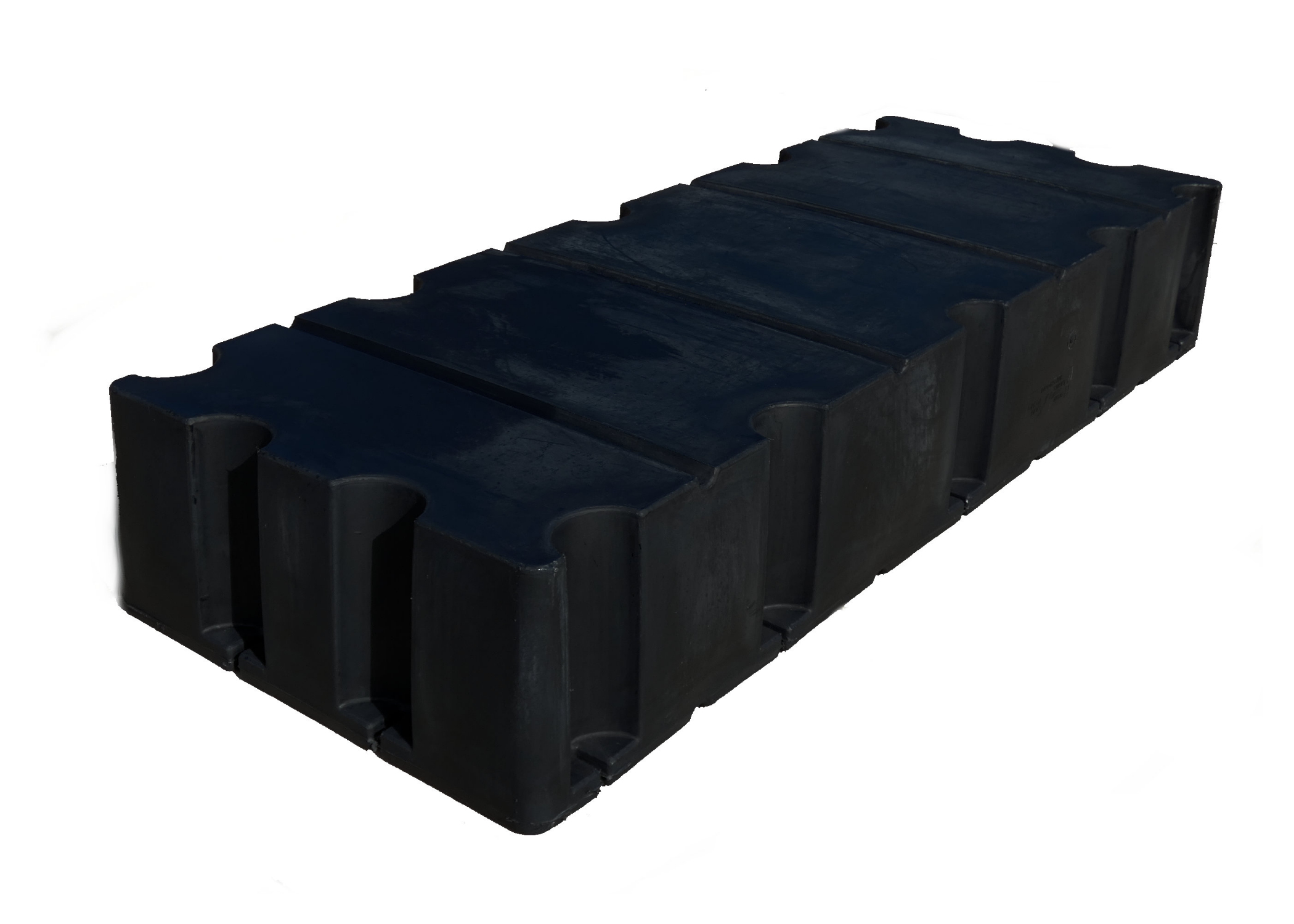

| FE-3816 |
|
3' X 8' X 16"  |
97 # | 1670 | 31.00 |
| FE-3820 |
|
3' X 8' X 20" | 107 # | 2080 | 40.00 |
| FE-3824 |
|
3' X 8' X 24" | 117 # | 2540 | 48.00 |

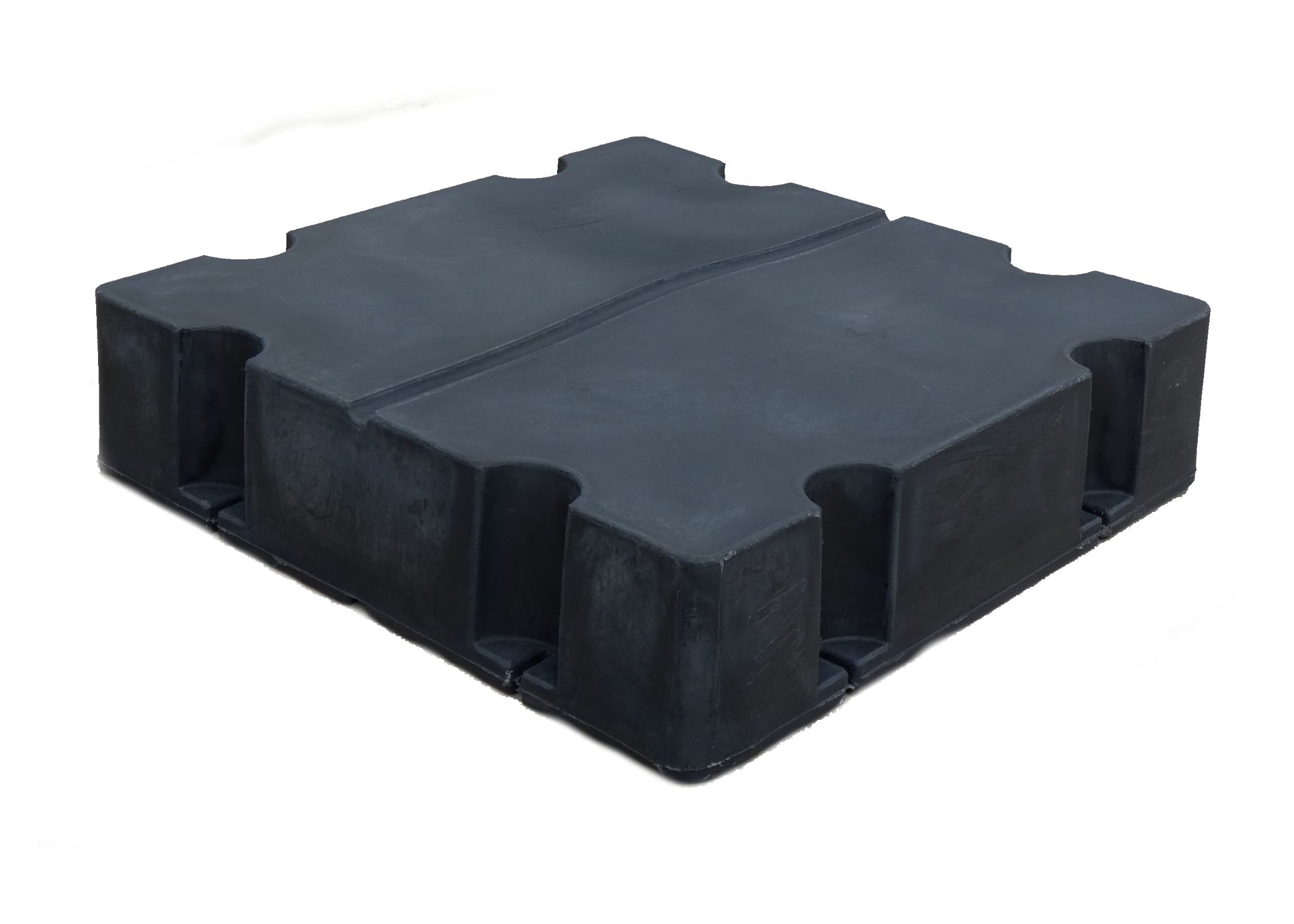

| FE-4412 |
|
4' X 4' X 12"  |
53 # | 850 | 16.00 |

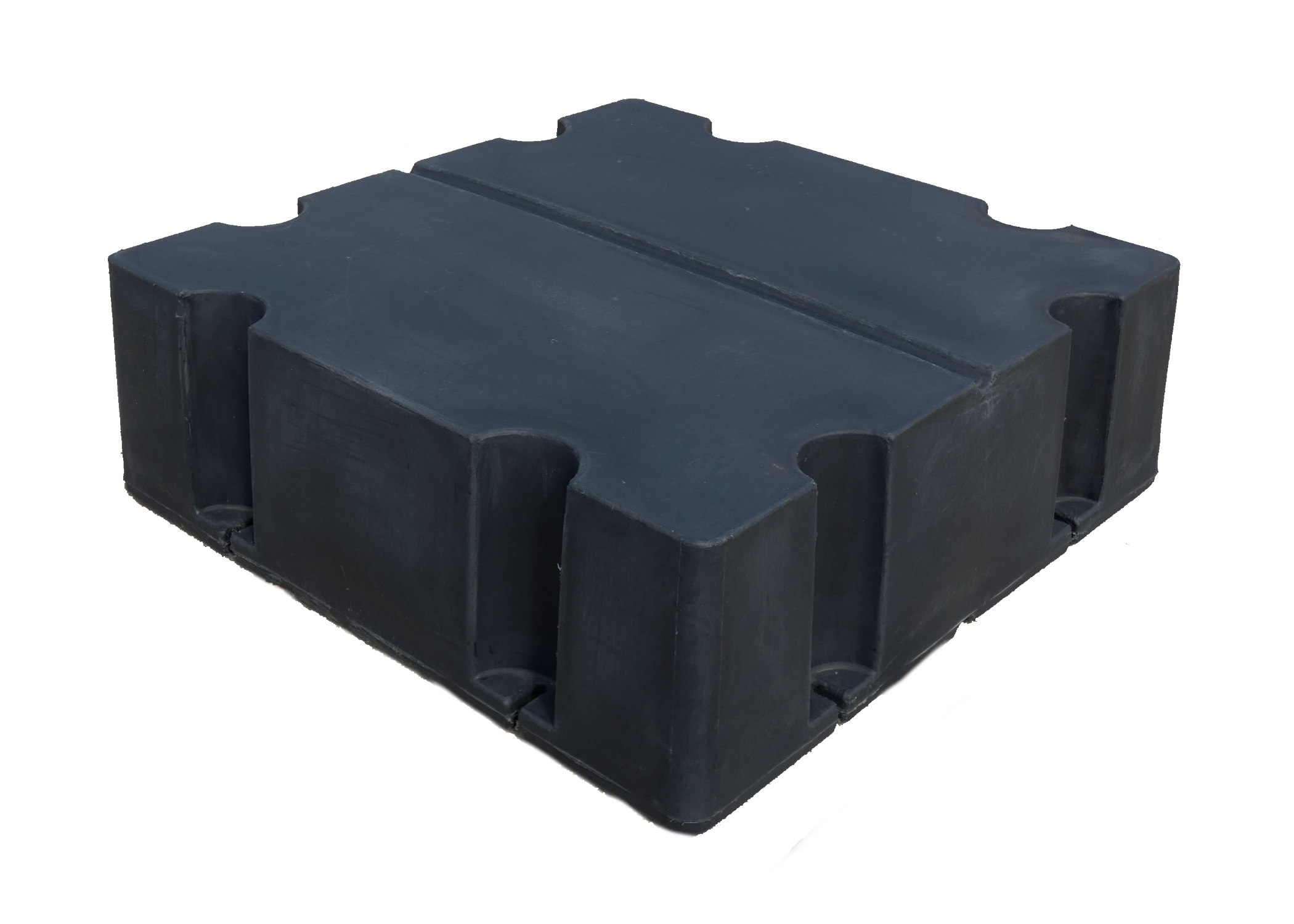

| FE-4416 |
|
4' X 4' X 16"  |
62 # | 1140 | 21.30 |

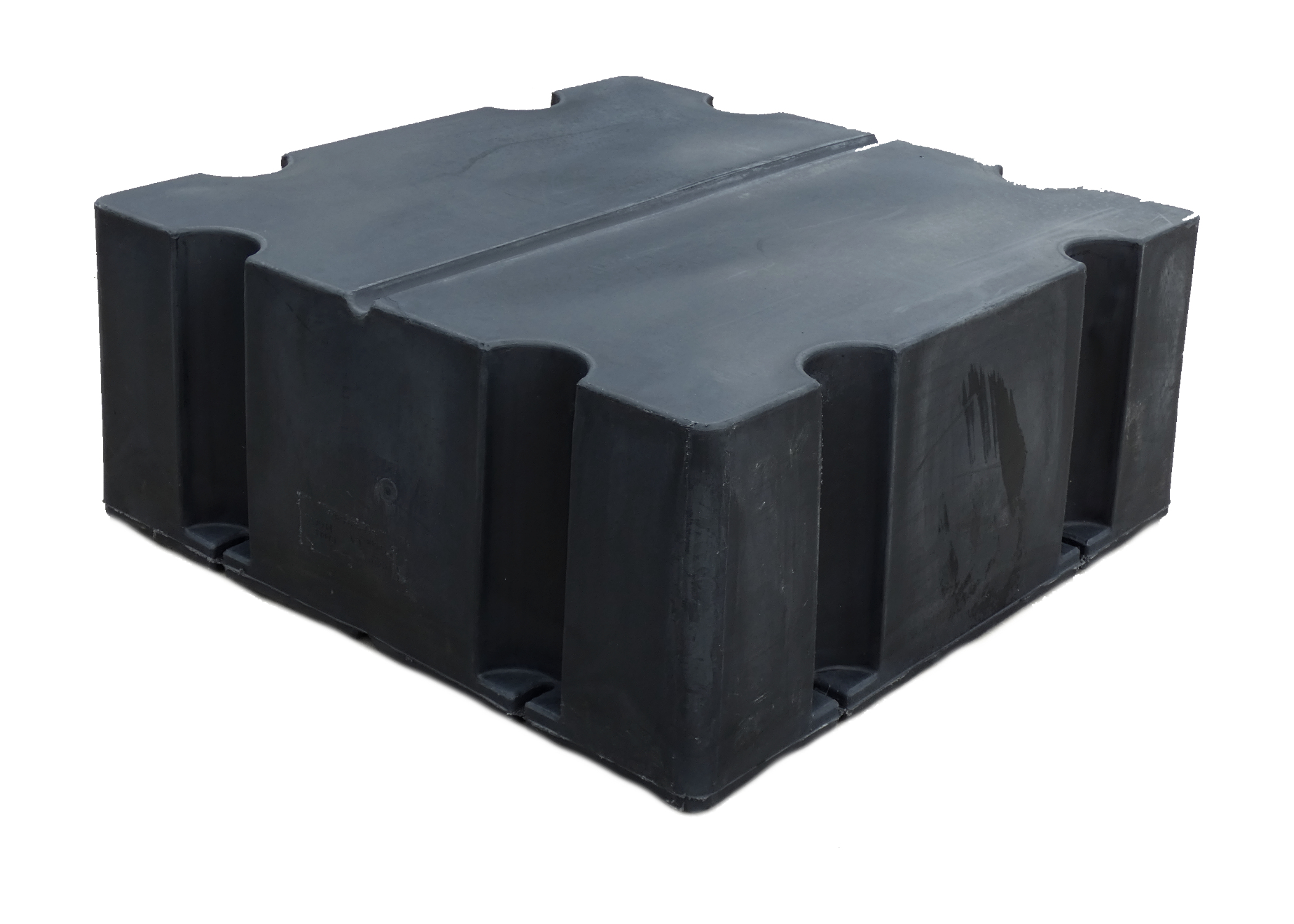

| FE-4420 |
|
4' X 4' X 20"  |
70 # | 1430 | 26.60 |
| FE-4424 |
|
4' X 4' X 24"  |
78 # | 1680 | 31.90 |

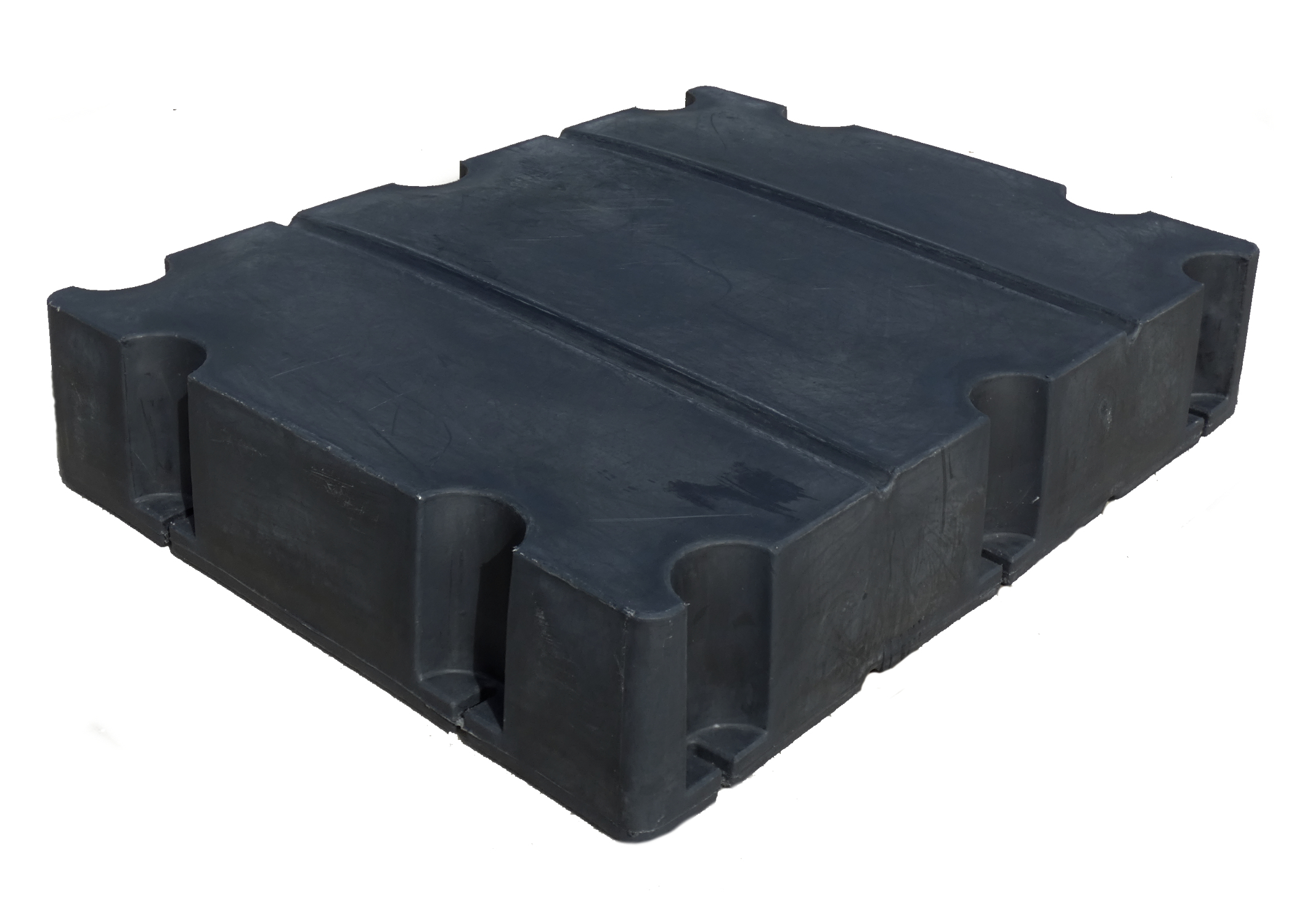

| FE-4512 |
|
4' X 5' X 12"  |
67 # | 1070 | 20.00 |

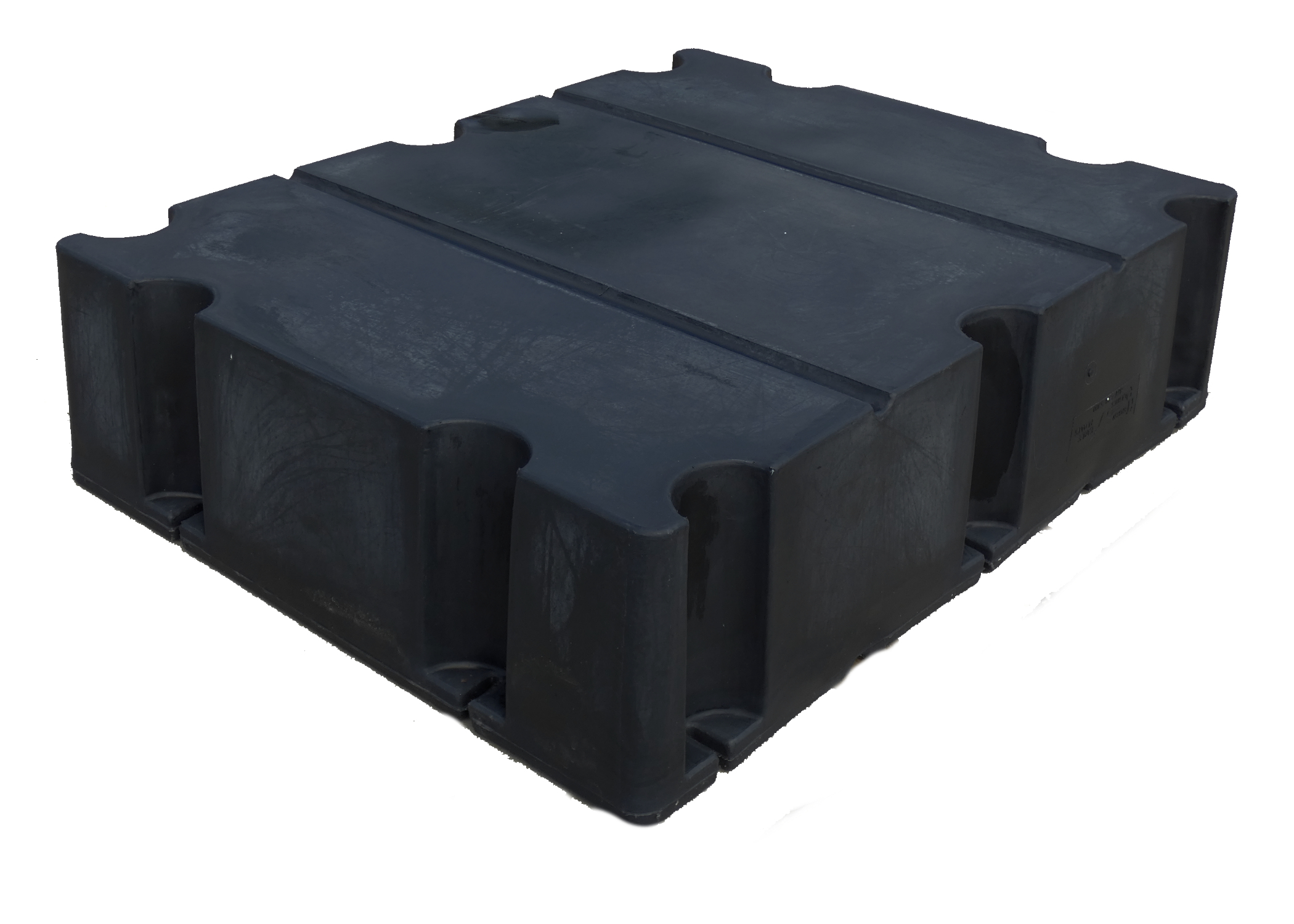

| FE-4516 |
|
4' X 5' X 16"  |
78 # | 1420 | 26.00 |

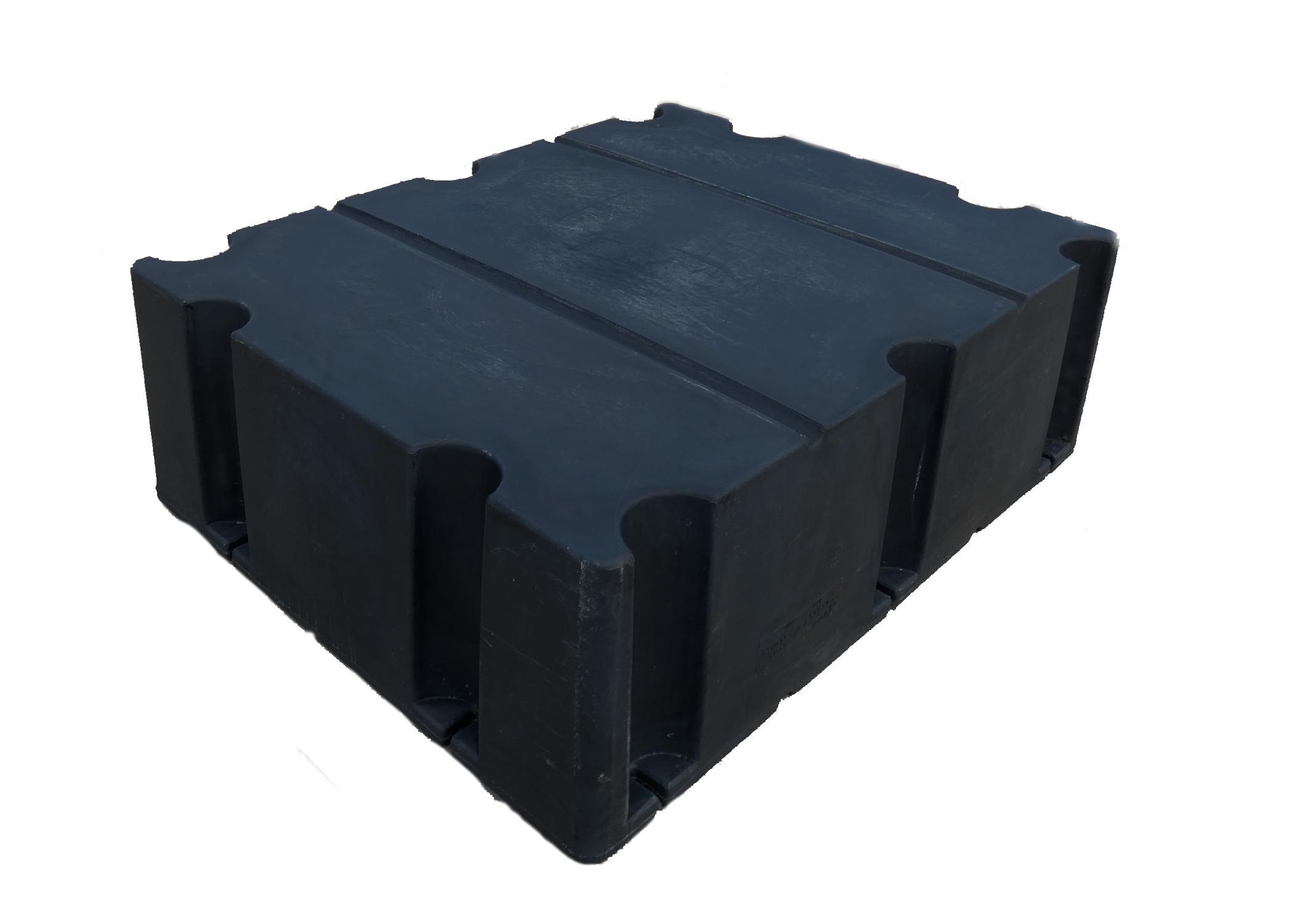

| FE-4520 |
|
4' X 5' X 20"  |
92 # | 1750 | 33.00 |
| FE-4524 |
|
4' X 5' X 24"  |
99 # | 2100 | 40.00 |

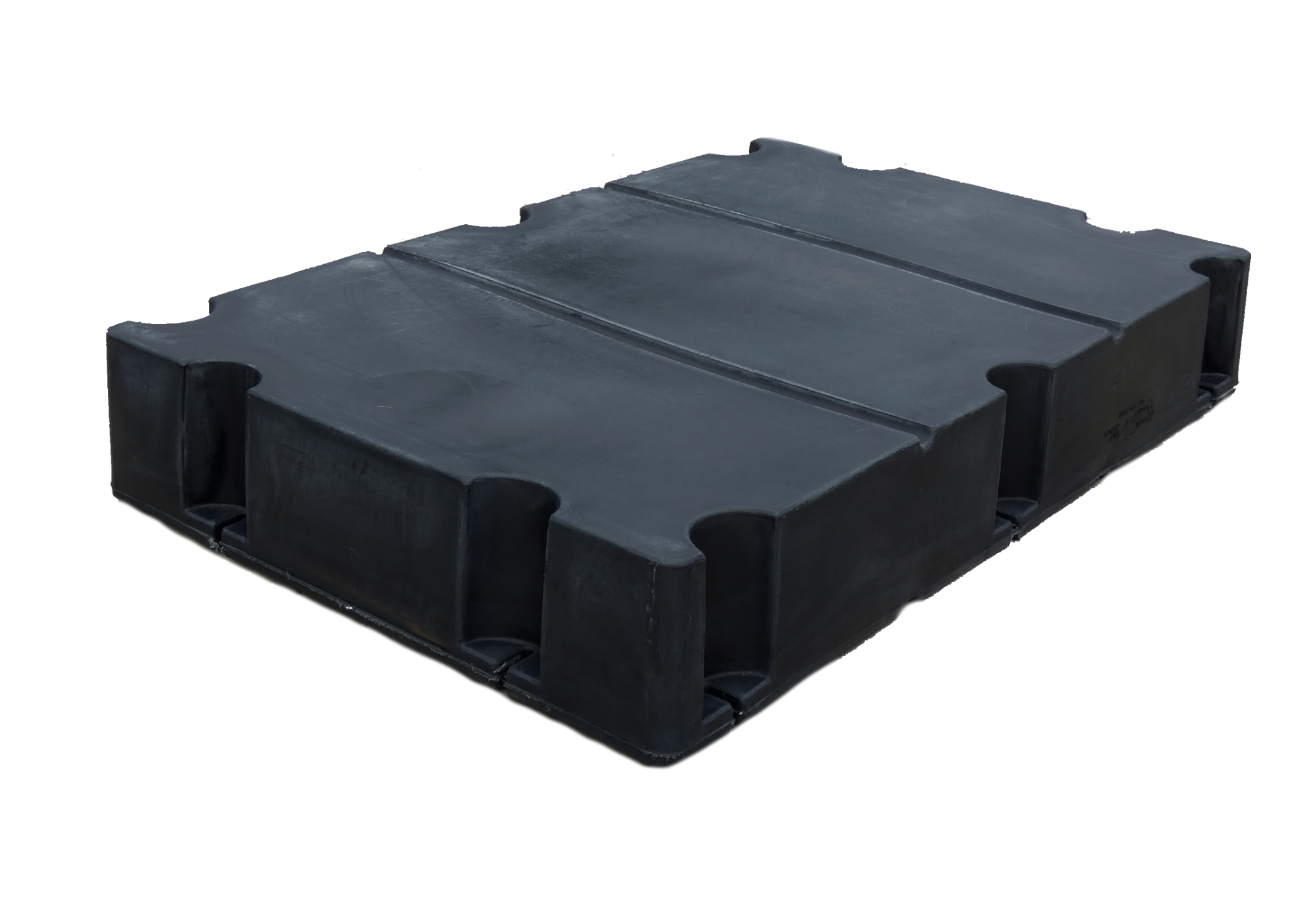

| FE-4612 |
|
4' X 6' X 12"  |
75 # | 1300 | 24.00 |

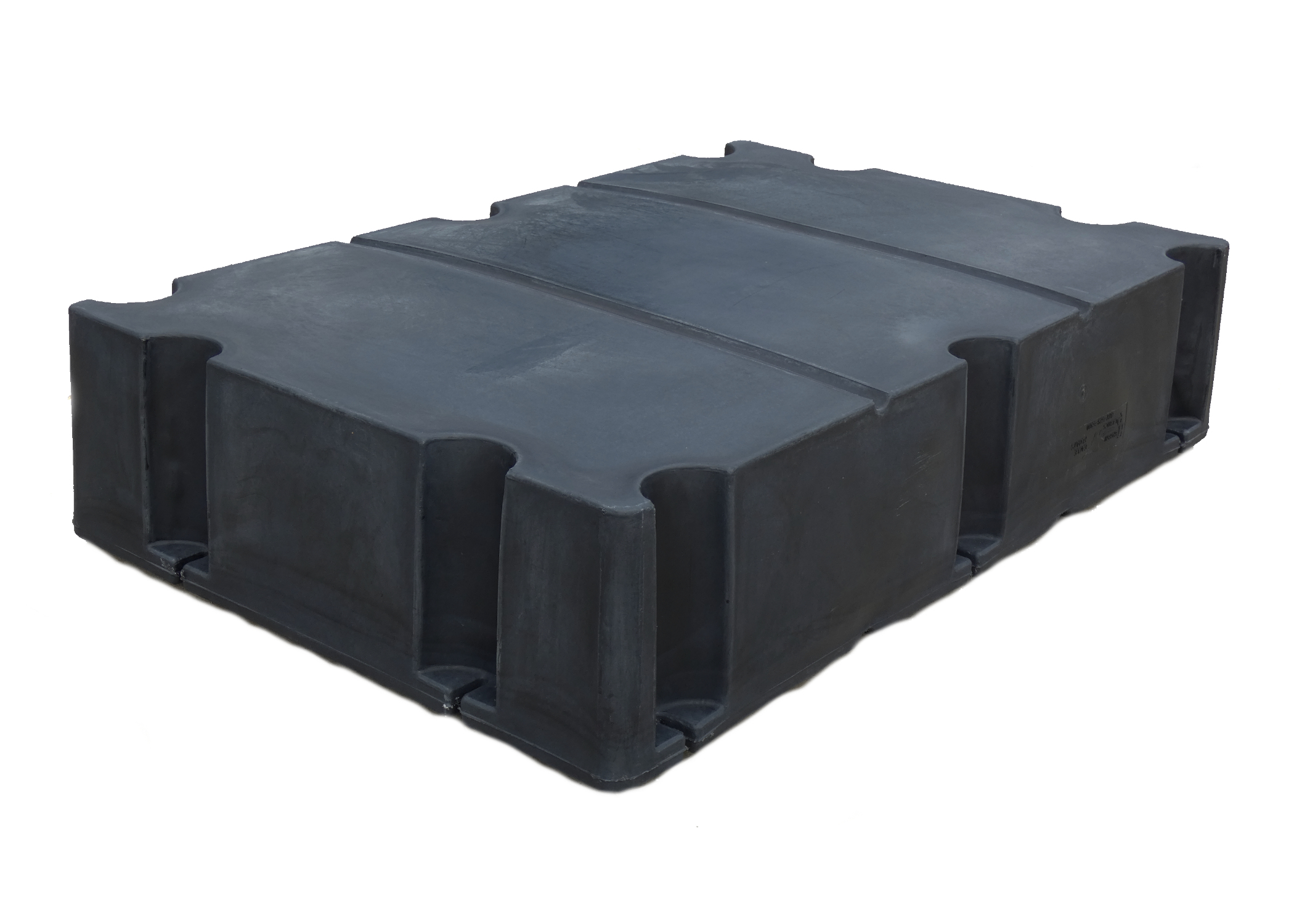

| FE-4616 |
|
4' X 6' X 16"  |
91 # | 1720 | 32.00 |

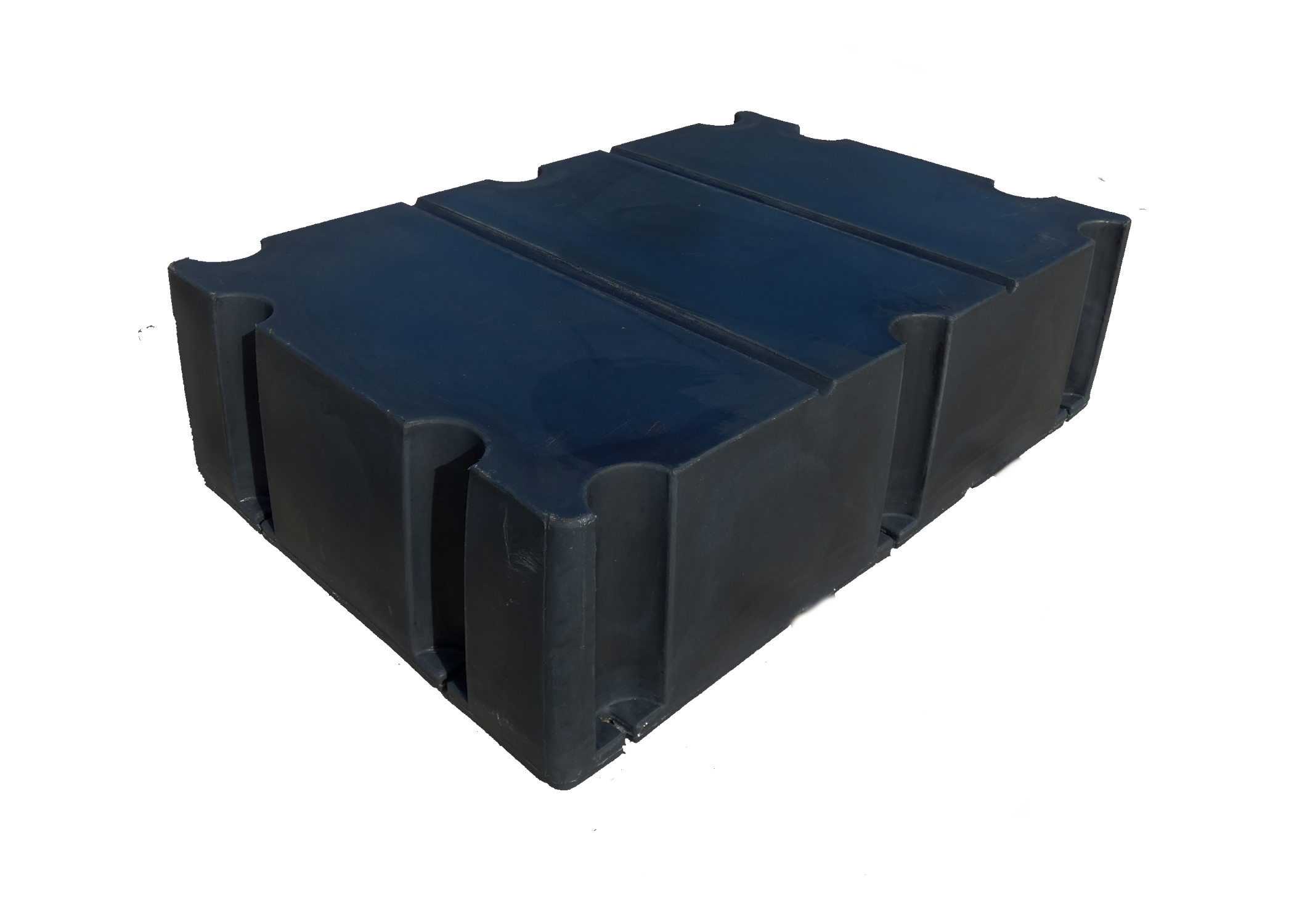

| FE-4620 |
|
4' X 6' X 20"  |
117 # | 2120 | 40.00 |

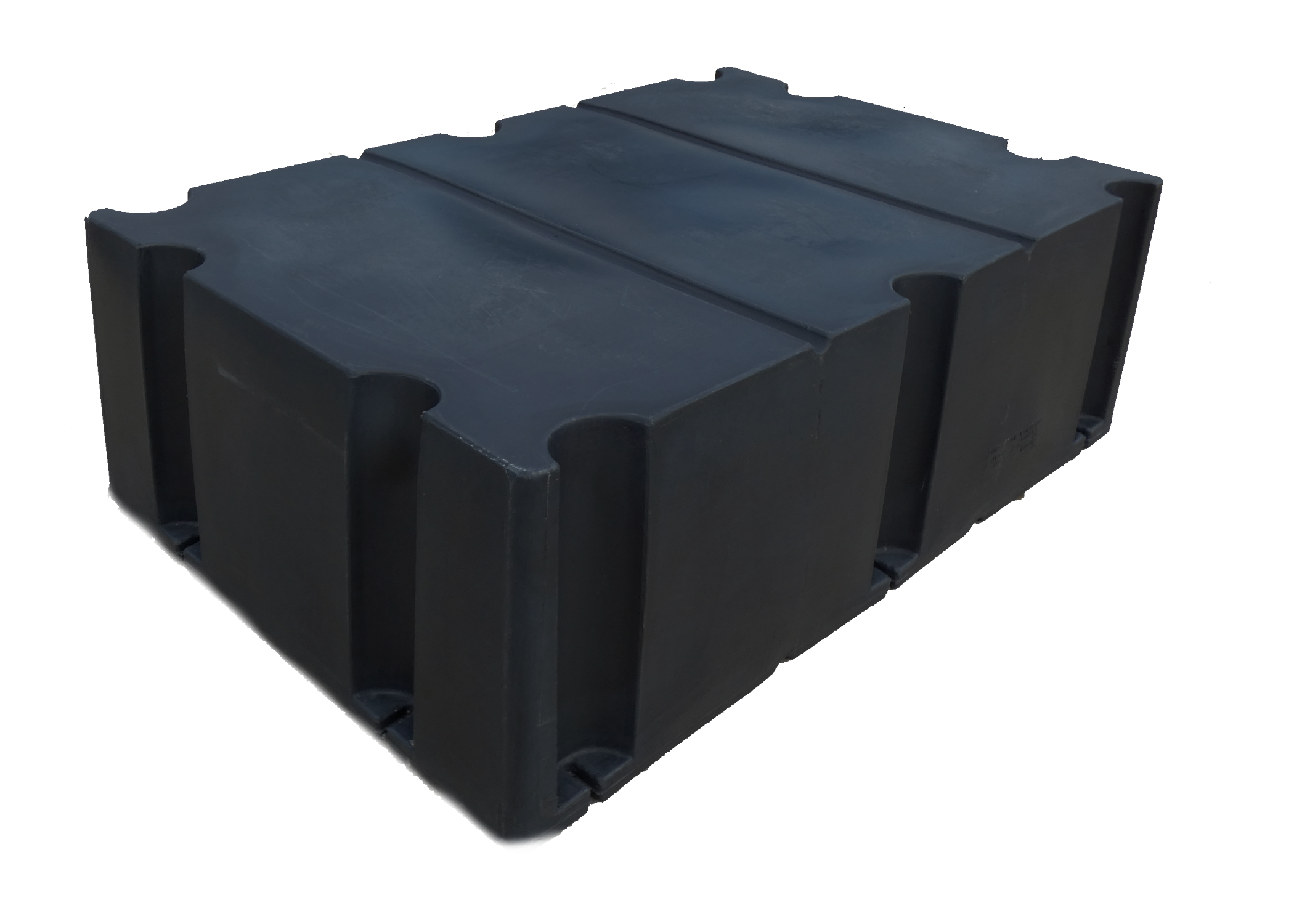

| FE-4624 |
|
4' X 6' X 24"  |
120 # | 2560 | 48.00 |
| FE-4632 |
|
4' X 6' X 32" | 142 # | 3400 | 64.00 |

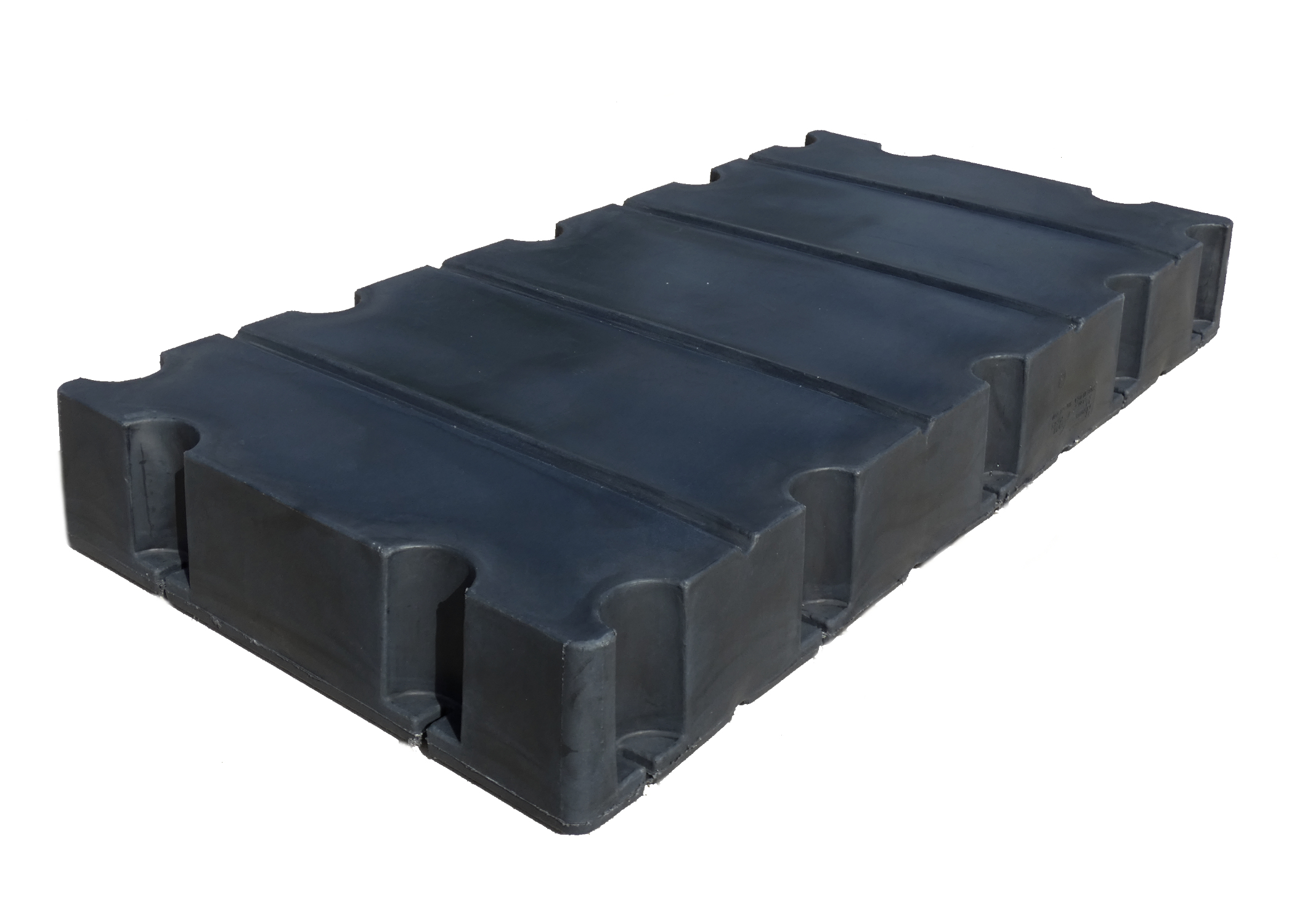

| FE-4812 |
|
4' X 8' X 12"  |
103 # | 1750 | 32.00 |

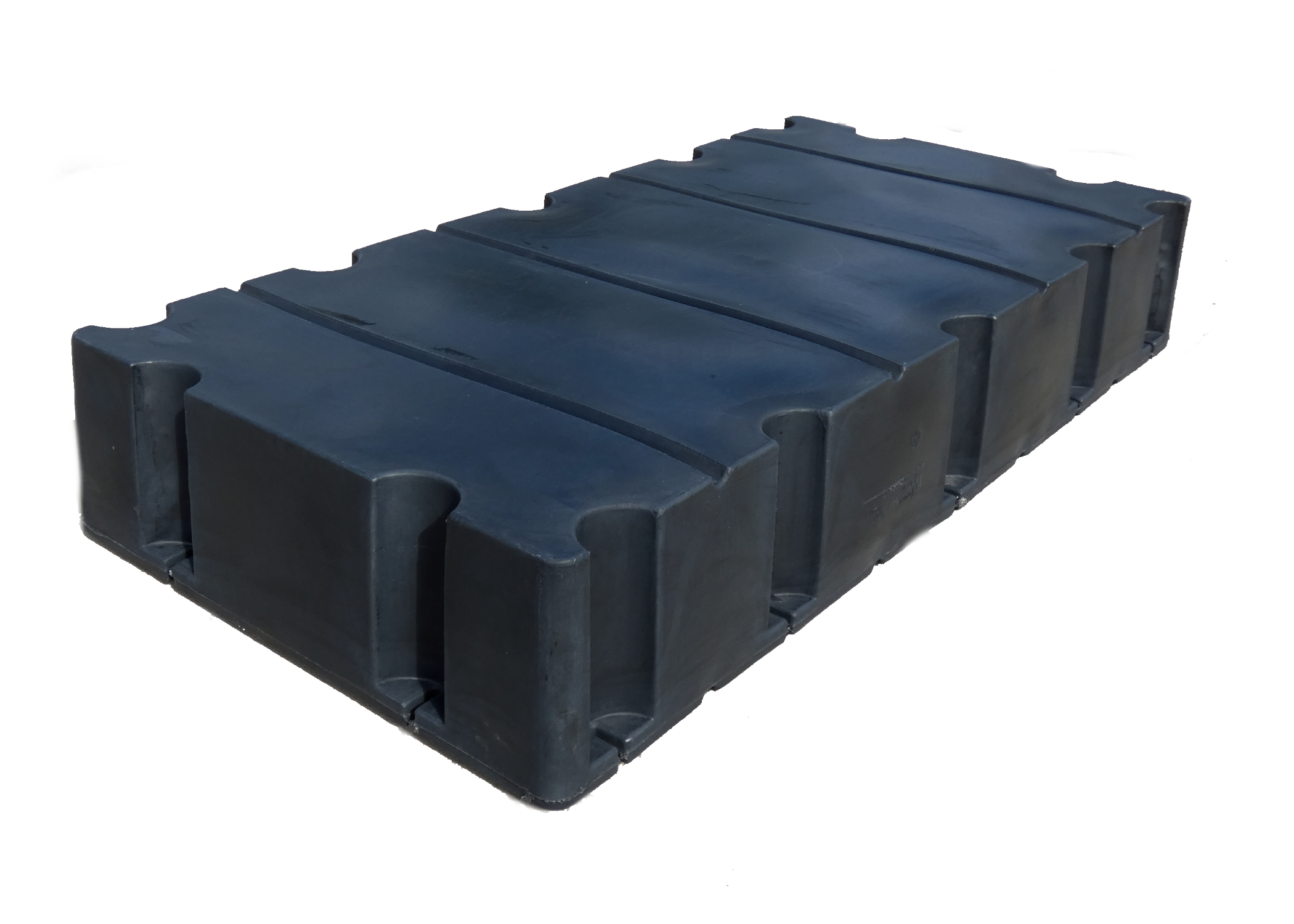

| FE-4816 |
|
4' X 8' X 16"  |
127 # | 2310 | 42.70 |

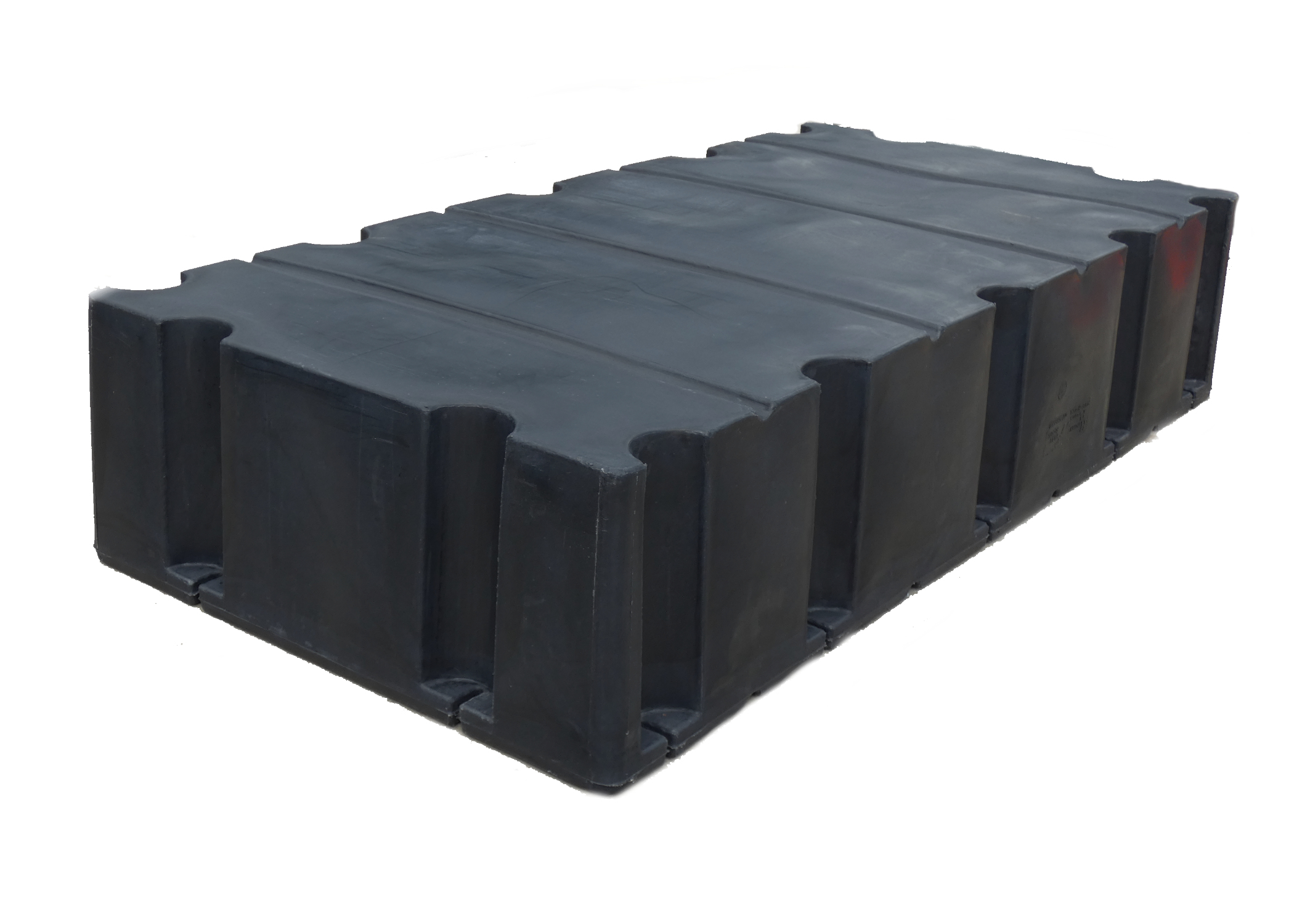

| FE-4820 |
|
4' X 8' X 20"  |
134 # | 2910 | 53.30 |
| FE-4824 |
|
4' X 8' X 24" | 160 # | 3450 | 64.00 |
| FE-4832 |
|
4' X 8' X 32" | 185 # | 4440 | 86.00 |

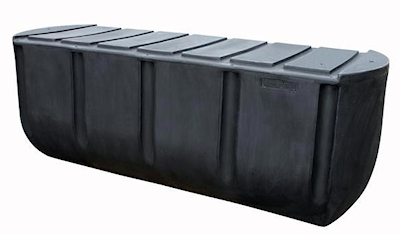

Lift Tanks
| Model | To Order Blat Tank |
Size | Weight | Pounds Float |
Cubic Feet |
|---|---|---|---|---|---|
| FE-369628 |
|
36"x96"x28" | 191 # | 2849 | |
| FE-369632 |
|
36"x96"x32" | 205 # | 3230 | |
| FE-489636 |
|
48"x96"x36" | 256 # | 5028 |
